Huaao Free Design Easy to Install Durable GMP Standard Pharmacy Clean Room With MGO SIP Mechanism Rock Wool Sandwich Panel

सभी श्रेणियाँ

मशीन निर्मित स्वच्छ कक्ष सैंडविच पैनल

हस्तनिर्मित स्वच्छ कक्ष सैंडविच पैनल

स्वच्छ कक्ष स्वचालित स्लाइडिंग दरवाजा

स्वच्छ कक्ष उपकरण

हमसे संपर्क करें

Mr. Jack

chenjinglin@gd-hao.com

+8618379778096

अब संपर्क करें

Huaao Free Design Easy to Install Durable GMP Standard Pharmacy Clean Room With MGO SIP Mechanism Rock Wool Sandwich Panel

ब्रांड नाम:	HUAAO
मॉडल संख्या:	HE007
एमओक्यू:	100 ㎡
कीमत:	US$6.55-7.55/㎡
पैकेजिंग विवरण:	1। फोम संरक्षण 2। लकड़ी के फ्रेम समर्थन 3। फोर्कलिफ्ट लोडिंग और अनलोडिंग 4। कंटेनर लोडिंग
भुगतान की शर्तें:	एल/सी, टी/टी, डी/ए, डी/पी, टी/टी/टी

विस्तार से जानकारी

उत्पाद का वर्णन

विस्तार से जानकारी

उत्पत्ति के प्लेस:

फोशान गुआंगडोंग चाइना

प्रमाणन:

CE/ISO

पैनल शीट सामग्री:

कलई चढ़ा इस्पात

प्रोडक्ट का नाम:

MGO/ROCKWOOL/SILICA/PU/फोम सैंडविच पैनल

प्रकार:

मशीन-निर्मित पैनल

पैनल शीट मोटाई:

0.376; 0.426; 0.476; 0.526 मिमी

पैनल मोटाई:

50 मिमी, 75 मिमी, 100 मिमी

चौड़ाई:

980 मिमी, 1180 मिमी

लंबाई:

स्वनिर्धारित

कोर सामग्री:

MGO/ROCKWOOL/SILICA/PU/फोम सैंडविच पैनल

स्वनिर्धारित

विशेषता:

हल्के वजन, तेजी से स्थापना, थर्मल इन्सुलेशन

स्टॉक ख़त्म

विवरण:

50-100 मिमी अग्निरोधक A2 बोर्ड थर्मल इन्सुलेशन ईपीएस सैंडविच पैनल मशीन से बना क्लीनरूम सैंडविच पैनल

आपूर्ति की क्षमता:

4000 वर्ग मीटर/दिन

प्रमुखता देना:

GMP standard pharmacy cleanroom panel

rock wool sandwich panel cleanroom

MGO SIP mechanism cleanroom panel

उत्पाद का वर्णन

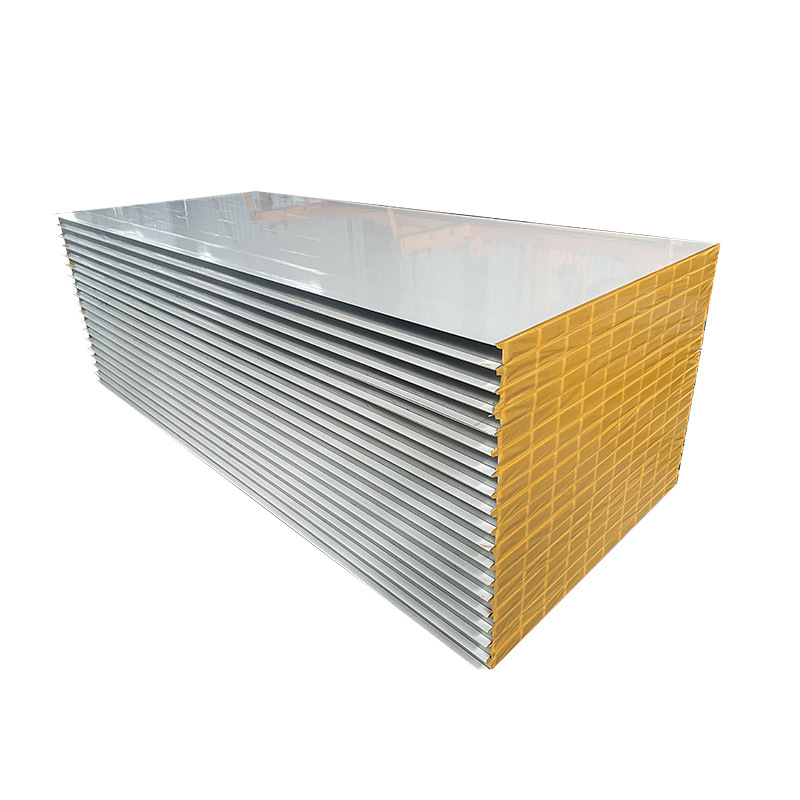

Huaao Free Design Easy to Install Durable GMP Standard Pharmacy Clean Room With MGO SIP Mechanism Rock Wool Sandwich Panel

This product is a modular cleanroom system designed for pharmaceutical pharmacies. Its key differentiator is the use of high-performance MGO board-faced Structural Insulated Panels (SIPs) with a rock wool core, making it exceptionally durable, fire-resistant, and well-insulated. It is marketed as being easy to install and compliant with GMP standards.

Product Specifications

Attribute	Value
Panel Sheet Material	Galvanized steel
Product Name	MGO/Rockwool/Silica/PU/Foam sandwich panel
Type	Machine-made panel
Panel Sheet Thickness	0.376; 0.426; 0.476; 0.526 mm
Panel Thickness	50mm, 75mm, 100mm,Customized
Width	950mm,980mm, 1180mm
Length	Customized
Core Material	MGO/Rockwool/Silica/PU/Foam sandwich panel
Color	Customized

Product Description

HUAAO Fireproof EPS Sandwich Panel is a machine-made cleanroom panel ideal for cold rooms and various industrial applications. The panel consists of three main components:

Core Material: Expanded polystyrene (EPS) foam providing excellent thermal insulation
Outer Layers: Metal sheets (steel or aluminum) or rigid materials like FRP for structural stability
Construction: Lightweight yet sturdy rectangular panels available in various thicknesses

Technical Parameters

Type: Mechanism panel
Width: 1150mm
Length: Customized
Weight: Baosteel/Lantian options
Panel thickness options: 50mm, 75mm, 100mm
Steel plate thickness options: 0.376-0.526mm (Stainless Steel: 0.5mm)
Core material density: 12-20 Kg/m³ (customizable)
Structure: Splicing of mouthpiece

Key Advantages

Fire Rating: A2 classification for enhanced safety
Thermal Performance: Excellent insulation properties
Lightweight: Easy to handle and install
Production Capacity: 40,000㎡ supply ability
Fire Resistance: Meets stringent safety standards
Sound Insulation: Reduces noise transmission
Durability: Long service life with minimal maintenance
Weather Resistance: Withstands harsh environmental conditions

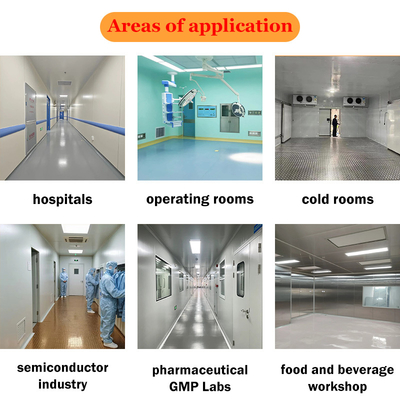

Applications

Widely used in various purification fields including:

Hospitals and laboratories
Pharmaceutical and electronics factories
New energy and aerospace facilities
Food and beverage production plants
Cosmetics manufacturing
Cold storage rooms

Note: When used as ceiling panel, it is not walkable.

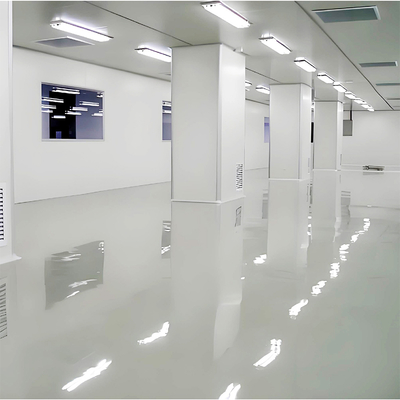

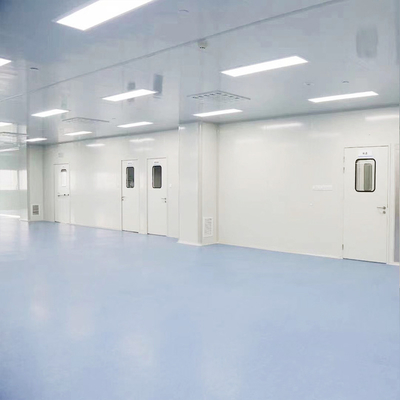

Project Photos

Company Photos

Frequently Asked Questions

Q: How about your core competitiveness?

A: Our raw material suppliers are Fortune 500 companies, and we have 800 employees. We offer comprehensive technical support and after-sales service. With 5 strategically located factories and the world's first automatic production line, we achieve 6-8 times higher production efficiency than traditional methods, resulting in lower costs and higher quality.

Q: Do you have your own construction team?

A: While we don't have our own construction team, all our cleanroom panels and connected parts are designed for easy installation. We provide detailed instructions, installation videos, and can send professional supervisors to the site if needed.

Q: How many kinds of products do you have?

A: We currently offer over 100 different products, including cleanroom sandwich panels, doors, windows, aluminum profiles, PVC flooring, and various cleanroom equipment.

Q: Can you provide samples? Is it free or extra?

A: Yes, we can provide free samples, but we would appreciate freight collection.

Q: What are your terms of payment?

A: Standard terms are 30% T/T prepaid, 70% T/T before delivery. We can discuss alternative payment arrangements for ongoing cooperation.

टैग:

रॉक वूल सैंडविच पैनल

मैग्नीशियम ऑक्साइड पैनल

ईपीएस सैंडविच पैनल

उत्पादों का विवरण

घर > उत्पादों >

मशीन निर्मित स्वच्छ कक्ष सैंडविच पैनल

Huaao Free Design Easy to Install Durable GMP Standard Pharmacy Clean Room With MGO SIP Mechanism Rock Wool Sandwich Panel

सभी श्रेणियाँ

मशीन निर्मित स्वच्छ कक्ष सैंडविच पैनल

हस्तनिर्मित स्वच्छ कक्ष सैंडविच पैनल

क्लीनरूम स्विंग दरवाजा

स्वच्छ कक्ष स्वचालित स्लाइडिंग दरवाजा

साफ कमरे की खिड़की

क्लीनरूम एल्युमिनियम प्रोफाइल

क्लीनरूम पीवीसी फर्श

क्लीनरूम पास बॉक्स

क्लीनरूम एयर शावर

क्लीनरूम हेपा फ़िल्टर बॉक्स

एफएफयू फैन फ़िल्टर यूनिट

स्वच्छ कक्ष वायु फ़िल्टर

फास्ट रोलिंग शटर डोर

स्वच्छ कक्ष उपकरण

Huaao Free Design Easy to Install Durable GMP Standard Pharmacy Clean Room With MGO SIP Mechanism Rock Wool Sandwich Panel

ब्रांड नाम:	HUAAO
मॉडल संख्या:	HE007
एमओक्यू:	100 ㎡
कीमत:	US$6.55-7.55/㎡
पैकेजिंग विवरण:	1। फोम संरक्षण 2। लकड़ी के फ्रेम समर्थन 3। फोर्कलिफ्ट लोडिंग और अनलोडिंग 4। कंटेनर लोडिंग
भुगतान की शर्तें:	एल/सी, टी/टी, डी/ए, डी/पी, टी/टी/टी

विस्तार से जानकारी

उत्पाद का वर्णन

विस्तार से जानकारी

उत्पत्ति के प्लेस:

फोशान गुआंगडोंग चाइना

ब्रांड नाम:

HUAAO

प्रमाणन:

CE/ISO

मॉडल संख्या:

HE007

पैनल शीट सामग्री:

कलई चढ़ा इस्पात

प्रोडक्ट का नाम:

MGO/ROCKWOOL/SILICA/PU/फोम सैंडविच पैनल

प्रकार:

मशीन-निर्मित पैनल

पैनल शीट मोटाई:

0.376; 0.426; 0.476; 0.526 मिमी

पैनल मोटाई:

50 मिमी, 75 मिमी, 100 मिमी

चौड़ाई:

980 मिमी, 1180 मिमी

लंबाई:

स्वनिर्धारित

कोर सामग्री:

MGO/ROCKWOOL/SILICA/PU/फोम सैंडविच पैनल

रंग:

स्वनिर्धारित

विशेषता:

हल्के वजन, तेजी से स्थापना, थर्मल इन्सुलेशन

न्यूनतम आदेश मात्रा:

100 ㎡

मूल्य:

US$6.55-7.55/㎡

पैकेजिंग विवरण:

1। फोम संरक्षण 2। लकड़ी के फ्रेम समर्थन 3। फोर्कलिफ्ट लोडिंग और अनलोडिंग 4। कंटेनर लोडिंग

प्रसव के समय:

7-15 दिन

स्टॉक ख़त्म

विवरण:

भुगतान शर्तें:

एल/सी, टी/टी, डी/ए, डी/पी, टी/टी/टी

आपूर्ति की क्षमता:

4000 वर्ग मीटर/दिन

प्रमुखता देना:

GMP standard pharmacy cleanroom panel

rock wool sandwich panel cleanroom

MGO SIP mechanism cleanroom panel

उत्पाद का वर्णन

Huaao Free Design Easy to Install Durable GMP Standard Pharmacy Clean Room With MGO SIP Mechanism Rock Wool Sandwich Panel

Product Specifications

Attribute	Value
Panel Sheet Material	Galvanized steel
Product Name	MGO/Rockwool/Silica/PU/Foam sandwich panel
Type	Machine-made panel
Panel Sheet Thickness	0.376; 0.426; 0.476; 0.526 mm
Panel Thickness	50mm, 75mm, 100mm,Customized
Width	950mm,980mm, 1180mm
Length	Customized
Core Material	MGO/Rockwool/Silica/PU/Foam sandwich panel
Color	Customized

Product Description

HUAAO Fireproof EPS Sandwich Panel is a machine-made cleanroom panel ideal for cold rooms and various industrial applications. The panel consists of three main components:

Core Material: Expanded polystyrene (EPS) foam providing excellent thermal insulation
Outer Layers: Metal sheets (steel or aluminum) or rigid materials like FRP for structural stability
Construction: Lightweight yet sturdy rectangular panels available in various thicknesses

Technical Parameters

Type: Mechanism panel
Width: 1150mm
Length: Customized
Weight: Baosteel/Lantian options
Panel thickness options: 50mm, 75mm, 100mm
Steel plate thickness options: 0.376-0.526mm (Stainless Steel: 0.5mm)
Core material density: 12-20 Kg/m³ (customizable)
Structure: Splicing of mouthpiece

Key Advantages

Fire Rating: A2 classification for enhanced safety
Thermal Performance: Excellent insulation properties
Lightweight: Easy to handle and install
Production Capacity: 40,000㎡ supply ability
Fire Resistance: Meets stringent safety standards
Sound Insulation: Reduces noise transmission
Durability: Long service life with minimal maintenance
Weather Resistance: Withstands harsh environmental conditions

Applications

Widely used in various purification fields including:

Hospitals and laboratories
Pharmaceutical and electronics factories
New energy and aerospace facilities
Food and beverage production plants
Cosmetics manufacturing
Cold storage rooms

Note: When used as ceiling panel, it is not walkable.

Project Photos

Company Photos

Frequently Asked Questions

Q: How about your core competitiveness?

Q: Do you have your own construction team?

Q: How many kinds of products do you have?

A: We currently offer over 100 different products, including cleanroom sandwich panels, doors, windows, aluminum profiles, PVC flooring, and various cleanroom equipment.

Q: Can you provide samples? Is it free or extra?

A: Yes, we can provide free samples, but we would appreciate freight collection.

Q: What are your terms of payment?

A: Standard terms are 30% T/T prepaid, 70% T/T before delivery. We can discuss alternative payment arrangements for ongoing cooperation.
